Three field measurements decide how much concrete a grade beam run needs: the total beam length along the centrelines, the formed width, and the poured depth. Measure them where the concrete will sit, correct the corners once, and the order quantity follows from a checked record.
What three measurements decide the concrete volume of a grade beam?
Total beam length, beam width, and beam depth. Measure the length along the beam centrelines so each corner counts once. Measure the width inside the forms at several points along each run. Measure the depth from the top of the blinding to the top of the pour line. Keep all three in one unit, then multiply: volume = centreline length × width × depth.
Taping the outside faces counts every corner twice and adds one beam-width cube per corner to the order. That overcount is real concrete in the truck.
When does this method apply?
This method covers straight grade beam runs of constant width and depth, in forms or cast against a trimmed trench. It takes the beam width and depth from the approved drawings. Selecting those dimensions belongs to the structural design.
Widened sections under columns, haunched ends, thickened junctions, pile caps, and footings are separate segments. Measure each on its own, then sum the segment volumes rather than stretching the main run to cover them.
How do you measure the beam length?
Run the tape along the beam centreline: the middle of the beam width, end to end of each run. On a rectangular loop of four runs with square corners, the outside-face perimeter counts every corner twice. The correction is simple: centreline total = outside perimeter − 4 × beam width. This shortcut fits rectangular loops with square corners only.
Mark a segment break wherever the beam width or depth changes, and wherever a new run meets a T-junction. Measure and record each segment on its own, then sum the segment volumes rather than only the lengths.
| Run | Centreline length (ft) | Width (ft) | Depth (ft) | Volume (ft³) |
|---|---|---|---|---|
| North run | 59 | 1.0 | 1.5 | 88.5 |
| South run | 59 | 1.0 | 1.5 | 88.5 |
| East run | 39 | 1.0 | 1.5 | 58.5 |
| West run | 39 | 1.0 | 1.5 | 58.5 |
| Total | 196 | 294.0 |
How do you measure width and depth?
Measure the width inside the forms at several points along each run. Forms spread under concrete pressure, and that spread becomes concrete in the order. When the beam is cast against earth, the drawing width is the design width, but the trench width is what fills: over-excavation adds concrete, so record the actual measured trench width rather than assuming the drawing width.
Measure the depth from the top of the blinding (the lean concrete) or the compacted base to the pour line marked on the forms. The ground surface beside the trench is not the reference. Check the depth against the section drawings before the pour.
Worked example: a 60 ft × 40 ft beam loop
A rectangular grade beam loop measures 60 ft × 40 ft on the outside faces. The beams are 12 in. wide and 18 in. deep from the blinding top to the pour line.
Outside perimeter = 2 × (60 + 40) = 200 ft. Width = 12 ÷ 12 = 1.0 ft. Depth = 18 ÷ 12 = 1.5 ft. Centreline total = 200 − 4 × 1.0 = 196 ft.
Volume = 196 × 1.0 × 1.5 = 294.0 ft³. Divide by 27: 294.0 ÷ 27 = 10.8889 yd³.
An outside-face tape would have given 200 × 1.0 × 1.5 = 300.0 ft³, which is 11.1111 yd³. The 6.0 ft³ difference equals 0.2222 yd³ of concrete the order never needed.
Metric cross-check: 294.0 × 0.028316846592 = 8.3252 m³. Convert back: 8.3252 × 1.307950376 = 10.8889 yd³. The two paths agree.
How do you measure haunches and widened sections?
Measure each one as its own box, using the drawing dimensions and the same centreline and datum rules. A widened beam section under a column that measures 3 ft long, 2 ft wide, and 1.5 ft deep holds 3 × 2 × 1.5 = 9.0 ft³, which is 9.0 ÷ 27 = 0.3333 yd³. Only include sections the drawing actually shows.
Pile caps, pedestals, and isolated footings beneath the beam are separate quantities with their own measurement rules. Do not extend the beam run to cover them, and do not let the haunch segment overlap the main run, or the overlap concrete gets counted twice.
How do you check the measurement before you order?
Recompute the total in metric, or have a second person run the tape independently. Either check must land on the same cubic yards within rounding.
Keep the measured volume and the order quantity as separate records. The order adds the supplier's selling increments and the project's own allowance; the measured volume stays untouched so the next check starts from clean numbers.
Mistakes that change the order quantity
- Taping the outside faces: each corner counts twice and adds one beam-width cube per corner. In the worked example that overcount is 6.0 ft³, about 0.22 yd³.
- Measuring the depth from the ground surface instead of the blinding top.
- Reading the width off the form labels without a tape check inside the forms.
- Multiplying feet by inches without converting to one unit.
- Lumping haunches or widened sections into the main run instead of measuring them as segments.
- Counting the beam volume into the pile cap or footing takeoff, or the reverse, so the junction concrete is counted twice.
What limits apply to this measurement?
A measured volume is not an order. It adds no allowance, rounds to no truck size, and deducts nothing for embedded items. Those entries belong in the order record with their own basis.

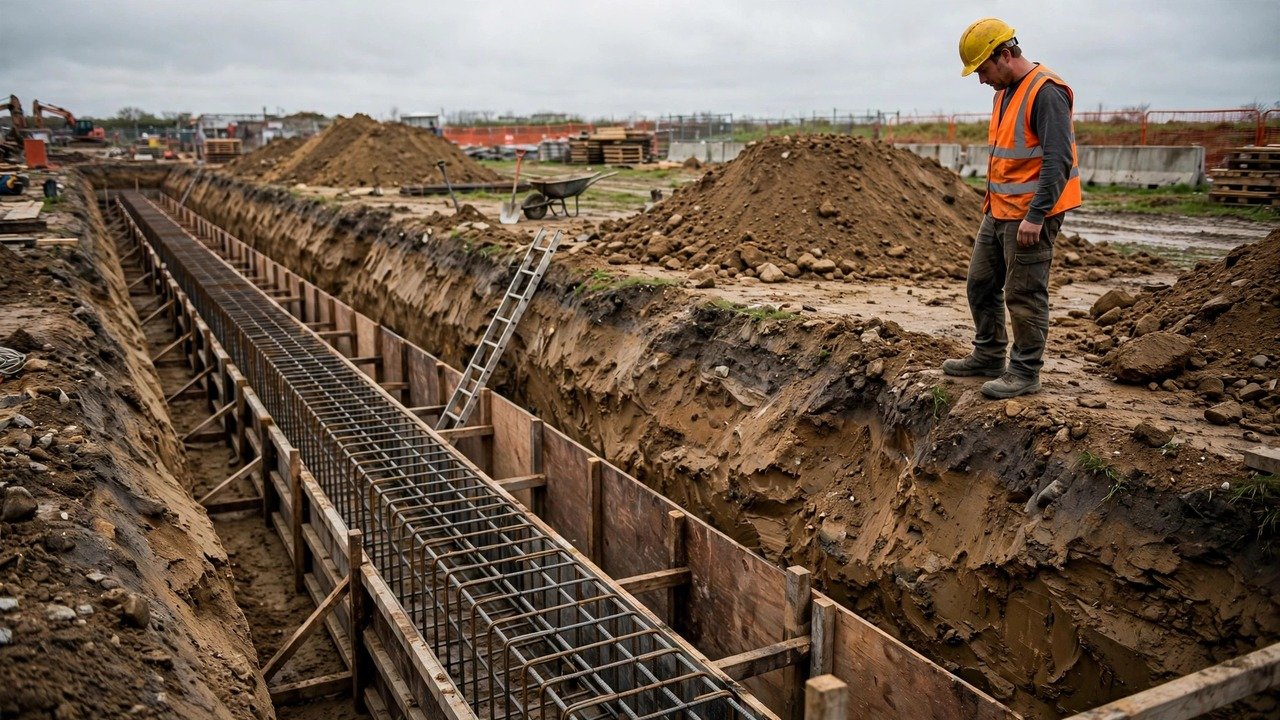

The drawings control the beam width and depth. Trench and formwork follow the project's safety plan and the applicable workplace rules. For U.S. work, OSHA 29 CFR 1926.651 and 1926.652 cover excavation conditions, and 29 CFR 1926.703 covers cast-in-place concrete formwork. Measure inside the forms before the pour begins, not during placement.
Sources and scope
- Estimating Concrete and Rebar Quantities (accessed 2026-10-10): documents the centreline, building-line and sectioning takeoff methods and the rectangular corner correction (outside perimeter − 4 × thickness).
- NIST Handbook 133 (2026), Appendix E (accessed 2026-10-10): cubic-foot, cubic-yard, and cubic-metre unit relationships.
- OSHA 29 CFR 1926.703 (accessed 2026-10-10): U.S. workplace requirements for cast-in-place concrete formwork.
- OSHA 29 CFR 1926.651 and OSHA 29 CFR 1926.652 (accessed 2026-10-10): covered U.S. excavation conditions, inspections, and protective systems.
Source scope: the estimating handout documents the takeoff methods and corner correction; the worked fixtures on this page verify the arithmetic independently. NIST supports the unit relationships. OSHA supports the workplace safety context in covered U.S. work. None of these sources designs the beam, sets an allowance, or selects the order quantity for a specific project.
