A basement slab is poured inside the foundation walls, so its concrete quantity follows the inside-wall measurement. The excavation that created the basement is a separate quantity. U.S. OSHA excavation rules widen the dig beyond the wall footprint with sloped or benched sides, and the dug profile controls the excavation volume, the spoil plan, and the backfill gap around the walls.
How do excavation safety rules change what a basement slab pour needs?
The safety rules usually do not change the slab concrete volume. Sloped or benched sides add horizontal layback on every face, so the dug pit is wider at the top than at the walls. When the slab is poured inside the foundation walls, the concrete fills the interior area, not the dug pit. The dug profile controls the excavation quantity and the backfill gap around the walls.
Which OSHA basics apply to a basement excavation pit?
These rules come from U.S. OSHA 29 CFR Part 1926, Subpart P, which covers construction excavations in the United States. Other countries use their own workplace rules.
| Rule | OSHA source | Effect on the basement work |
|---|---|---|
| Excavations 5 ft (1.52 m) or deeper need a protective system: sloping, benching, shoring, or shielding. The two exceptions are excavations entirely in stable rock and shallower digs where a competent person finds no indication of a potential cave-in. | 1926.652(a)(1)(ii) | A full-depth basement pit gets a sloped, benched, shored, or shielded profile. Measure the section actually dug. |
| Maximum allowable slopes for excavations under 20 ft deep, stated horizontal to vertical: Stable Rock vertical (90 degrees); Type A 3/4:1 (53 degrees); Type B 1:1 (45 degrees); Type C 1 1/2:1 (34 degrees). | Appendix B, Table B-1 | The slope ratio sets the pit top dimensions. Read every ratio as horizontal to vertical. |
| When there are signs of distress, the actual slope must be at least 1/2H:1V less steep than the maximum. Surcharge loads require the competent person to set the reduction. | Appendix B(c)(3) | The dug envelope can exceed the table value. Record the slope actually used. |
| Every soil and rock deposit must be classified by a competent person as Stable Rock, Type A, Type B, or Type C, using at least one visual and one manual analysis. No soil is Type A if it is fissured, subject to vibration, or previously disturbed. | Appendix A | Reworked or backfilled ground usually classifies no better than Type B. Plan the envelope for the classification found, not the soil assumed. |
| Keep spoil, materials, and equipment at least 2 ft (0.61 m) from the edge of excavations, or hold them back with retaining devices. | 1926.651(j)(2) | Spoil piles sit back from the pit edge around the whole perimeter. Piling at the edge adds a surcharge load and a falling-material hazard. |
| A competent person must inspect excavations, adjacent areas, and protective systems daily: before work starts, as needed during the shift, and after every rainstorm. | 1926.651(k)(1) | Rain can change the pit profile. Re-measure the section before the pour. |
| Do not excavate below the level of the base or footing of any foundation or retaining wall that could pose a hazard, except with a support system, in stable rock, or with a registered professional engineer approval. | 1926.651(i)(2) | Applies where the dig runs near existing footings or property-line walls. Do not undermine them. |
| Employees must not work in excavations with accumulated or accumulating water unless adequate precautions protect them against the water hazards. | 1926.651(h)(1) | Basement pits collect water. Control or remove it before workers enter and before the pour. |
| Determine the estimated location of underground installations before opening the excavation. | 1926.651(b)(1) | A basement footprint crosses service lines. A relocated pit edge means re-measurement. |
| Sloping or benching for excavations deeper than 20 ft must be designed by a registered professional engineer. | Appendix B, Table B-1 note 3 | Deep basements pass beyond table arithmetic. The protective system becomes an engineering design. |
| A stairway, ladder, ramp, or other safe means of egress is required in trench excavations 4 ft (1.22 m) or deeper so workers travel no more than 25 ft (7.62 m) laterally. A trench is defined as a narrow excavation whose depth exceeds its width and whose width does not exceed 15 ft. | 1926.651(c)(2); 1926.650(b) | The 25-ft rule targets trench work. For a wide basement pit, provide safe access the competent person approves and keep it in the plan. |
OSHA rules control worker protection. Project drawings, specifications, geotechnical information, contract measurement rules, and responsible qualified people control the wall dimensions, working clearance, slab thickness, and payable quantity. These rules are not legal advice; confirm the actual protective system through the project safety plan and the competent person.
Does OSHA offer an exception for house basement excavations?
An OSHA letter of interpretation, reported by the National Association of Home Builders, says the protective-system requirements do not apply to house foundation and basement excavations when every one of these conditions is met: the excavation is less than 7.5 ft deep, or it is benched at least 2 ft horizontally for every 5 ft or less of vertical height; the minimum horizontal width at the bottom, from the excavation face to the formwork or wall, is as wide as practicable and no less than 2 ft; there is no water, tension cracking, or other condition reducing stability; no heavy equipment causes vibration near the excavation while employees are inside; soil, equipment, and material surcharge loads stay at least as far from the top edge as the excavation is deep; the crew in the excavation is the minimum needed; and the work is planned and carried out to minimize employee time in the excavation.
Miss one condition and the exception falls away, and the standard protective-system rules apply. The interpretation also changes nothing about the other Subpart P duties: inspections, spoil setbacks, water rules, and adjacent-structure checks still apply. This is an agency interpretation, not CFR text, and not legal advice; confirm how it applies through the project safety plan and the competent person.
How do you compute the dug profile of a basement pit?
Use the prismoidal formula for a sloped rectangular pit. This method measures the excavation quantity and the backfill gap; it does not give the slab concrete volume.
Layback per side = depth x slope ratio (as a decimal)
Top dimension = bottom dimension + 2 x layback
Dug-pit volume = depth / 6 x (bottom area + 4 x mid-depth area + top area)
Worked metric example
A basement pit has a bottom of 12.0 m by 9.0 m and a depth of 2.6 m. The competent person classifies the soil as Type B, so the maximum allowable slope is 1:1.
- Layback per side: 2.6 x 1 = 2.6 m.
- Top dimensions: 12.0 + 2 x 2.6 = 17.2 m; 9.0 + 2 x 2.6 = 14.2 m.
- Areas: bottom = 12.0 x 9.0 = 108.0 m2; mid-depth = 14.6 x 11.6 = 169.36 m2; top = 17.2 x 14.2 = 244.24 m2.
- Volume: 2.6 / 6 x (108.0 + 4 x 169.36 + 244.24) = 0.4333 x 1029.68 = 446.2 m3.
Result: the dug profile measures 446.2 m3 bank. The vertical-wall box would hold 12.0 x 9.0 x 2.6 = 280.8 m3, so the safety-driven slopes add 165.4 m3 of excavation.
Worked imperial example
A basement pit has a bottom of 30 ft by 24 ft and a depth of 8 ft. The soil classifies as Type C, so the maximum allowable slope is 1 1/2:1.
- Layback per side: 8 x 1.5 = 12.0 ft.
- Top dimensions: 30 + 2 x 12 = 54 ft; 24 + 2 x 12 = 48 ft.
- Areas: bottom = 30 x 24 = 720 ft2; mid-depth = 42 x 36 = 1512 ft2; top = 54 x 48 = 2592 ft2.
- Volume: 8 / 6 x (720 + 4 x 1512 + 2592) = 1.3333 x 9360 = 12,480 ft3 = 12,480 / 27 = 462.2 yd3.
Result: the dug profile measures 12,480 ft3 bank (462.2 yd3). The vertical-wall box would hold 30 x 24 x 8 = 5760 ft3 (213.3 yd3), so the slopes add 6720 ft3 of excavation.
Write "446.2 m3 bank, 1:1 Type B, 2.6 m depth" rather than "446.2 m3". A reader cannot verify or reuse a volume without knowing the slope, classification, and depth behind it.
Why does the inside-wall measurement, not the dug pit, control the slab concrete?

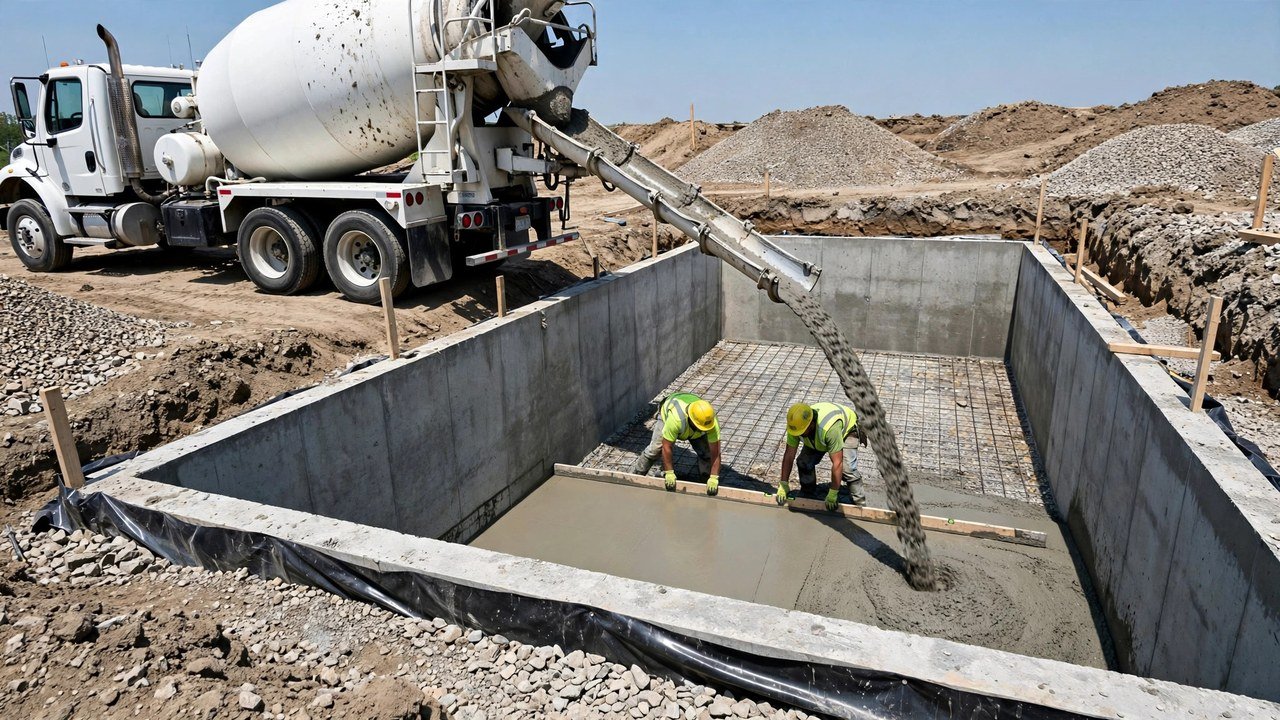

Basement slabs are poured inside the foundation walls, and the walls give the slab its boundary. The slab order follows the interior area and the poured depth on the prepared subgrade, taken from the approved drawings and the inside-wall measurement method. Ordering from the dug pit would add the backfill gap to the concrete order and overstate the pour.
What conditions change the answer?
- Layered soils: classify each layer under Appendix A. Appendix B gives layered-soil configurations, so one table value for the full depth is not enough.
- Water, rain, and surcharge: a high water table, heavy rain, or equipment near the edge requires flatter slopes or a revised plan from the competent person. Re-measure the pit after rain.
- Adjacent structures: the adjacent-foundation rule applies before digging below an existing footing or near property-line walls.
- Benched sides: benched pits use the stepped section actually dug instead of a smooth prismoid.
- Depths over 20 ft: the slope table stops applying; a registered professional engineer designs the protective system.
- State conversions: the computed volume is bank volume in place. Loose order quantities and compacted backfill need separate, evidenced conversions. The bank and loose volume guide shows how to keep the states separate.
- Access and spoil: the 2-ft spoil setback and the approved access provision shape the site layout around the pit. They do not change the excavated volume, so do not deduct them from it.
Common basement excavation mistakes
- Ordering slab concrete from the dug pit instead of the inside-wall measurement.
- Treating the OSHA maximum slope as the required slope instead of the steepest allowed.
- Reading slope ratios as vertical-to-horizontal.
- Assuming Type A soil on reworked, fissured, or vibration-exposed ground.
- Claiming the residential-basement exception without meeting every condition.
- Piling spoil at the pit edge.
- Skipping the inspection and re-measurement after rain.
- Working in accumulated water without the required precautions.
- Mixing the excavation quantity, the slab concrete quantity, and the backfill quantity in one total.
Sources and scope
- OSHA 29 CFR 1926.651, Specific Excavation Requirements, retrieved 2026-10-10: utility location, access and egress, water accumulation, adjacent structures, spoil setback, and inspection rules for covered U.S. construction excavations.
- OSHA 29 CFR 1926.652, Requirements for Protective Systems, retrieved 2026-10-10: cave-in protection options and the 5-ft rule.
- OSHA Subpart P Appendix B, Sloping and Benching, retrieved 2026-10-10: maximum allowable slopes by soil type, distress and surcharge rules, and the 20-ft engineer-design trigger.
- OSHA Subpart P Appendix A, Soil Classification, retrieved 2026-10-08: competent-person classification requirement and Type A exclusions.
- National Association of Home Builders, Know the Different Excavation Requirements for Your Project, published Jun 14, 2024, retrieved 2026-10-10: report of an OSHA letter of interpretation giving the conditional residential house-foundation and basement exception.
- Google Search Central, Creating helpful, reliable, people-first content, retrieved 2026-10-08: the people-first and originality standards applied during drafting.
Scope: the arithmetic measures the stated dug pit profile and the gap between that profile and the foundation walls. OSHA facts are limited to covered U.S. construction work under 29 CFR Part 1926, Subpart P. The governing drawings, survey and testing methods, geotechnical information, contract measurement provisions, safety plan, applicable law, and responsible qualified people control the actual protective system and final project quantity.
