Concrete Column Formwork Area: Faces and Reuse

How do you calculate concrete column formwork area?

Multiply the formed perimeter by the accepted formed height and the number of identical columns. Rectangular columns use 2 × (width + depth) for the perimeter. Round columns use π × diameter.

Use the Concrete Column Calculator to check the approved column shape and dimensions. Record formwork in square metres or square feet on a separate worksheet because the calculator's concrete result is a volume.

What does the measured area represent?

The measured area is the net surface where the selected formwork classification contacts fresh concrete. It can support quantity measurement and provide the starting area for a form-system schedule.

It does not state how many plywood sheets, proprietary panels, ties, clamps, walers, props, platforms, release-agent containers, or labor hours the project needs. Those quantities depend on the approved form design, product modules, cut and joint layout, simultaneous pours, reuse plan, finish requirement, condition, and supplier package.

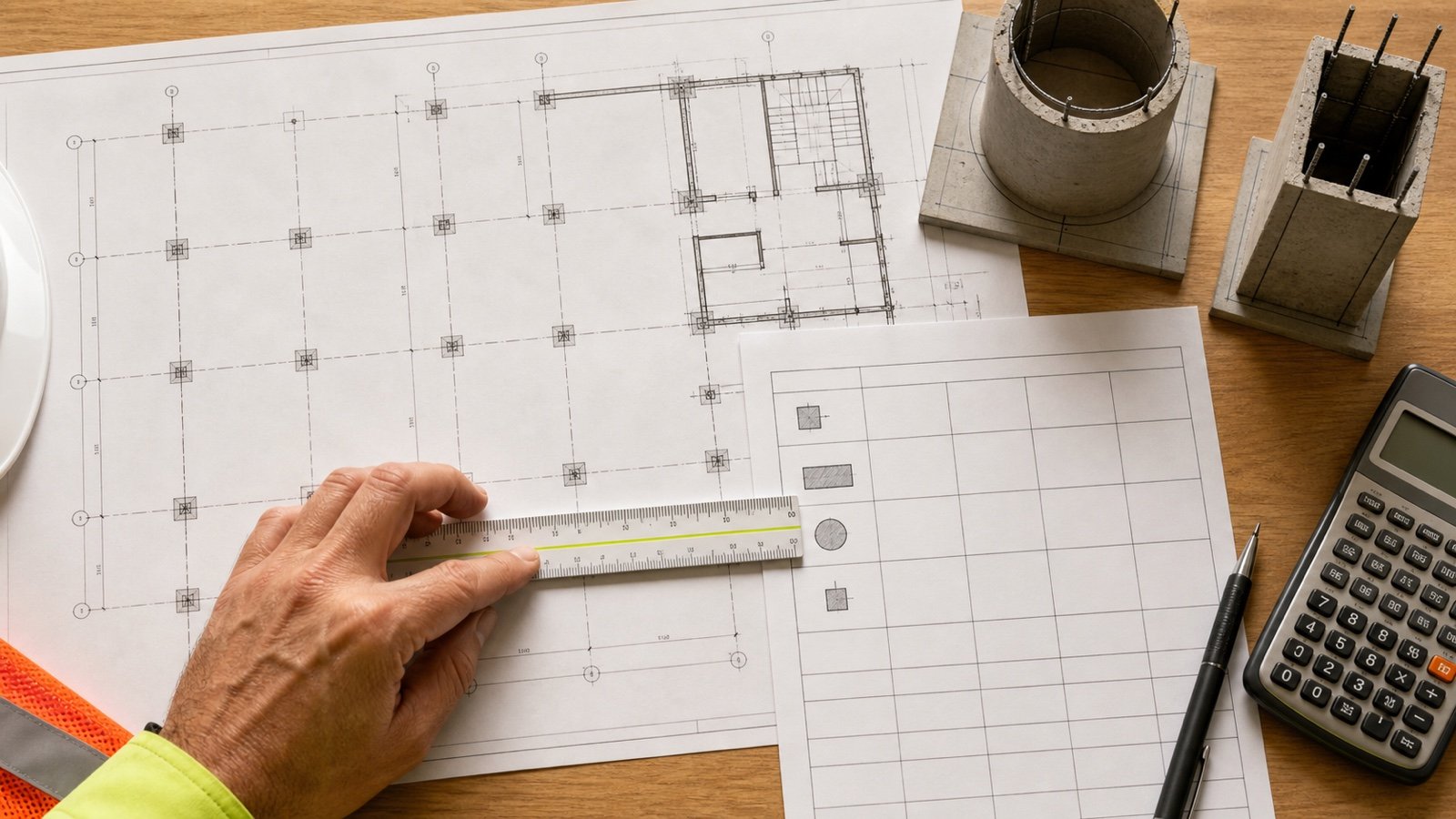

Which records control the formwork takeoff?

Use the current structural plan, column schedule, sections, joint details, concrete finish specification, measurement rules, pour plan, and selected system documents. Record each revision beside the affected quantity.

• Column mark, level, location, shape, and count.
• Formed width and depth or formed diameter.
• Base and top of the formed height.
• Beam, slab, wall, pedestal, capital, kicker, and construction-joint intersections.
• Isolated, attached, buried, permanent-form, or left-in condition.
• Plain or special finish and curved or irregular description.
• Selected form system, panel layout, components, and form design revision.
• Simultaneous sets, planned cycles, inspection status, and unresolved changes.

HKIS includes column marks, type, cross-section, top and base levels, concrete designation, volume, and formwork-side area in its quantity-information example. RICS NRM 2 separates sides of isolated columns from attached columns and requires the number of isolated columns to be stated under that measurement framework.

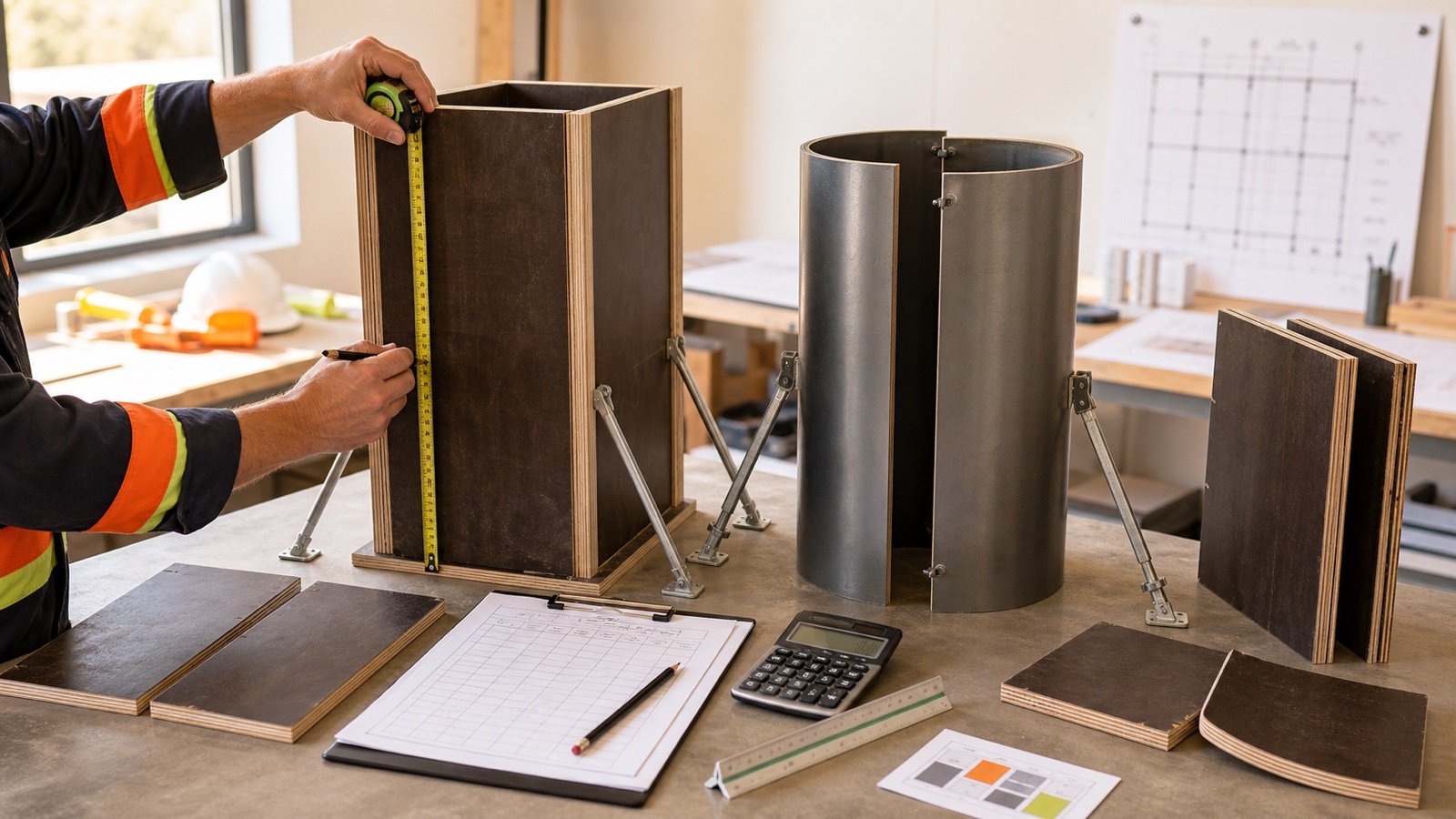

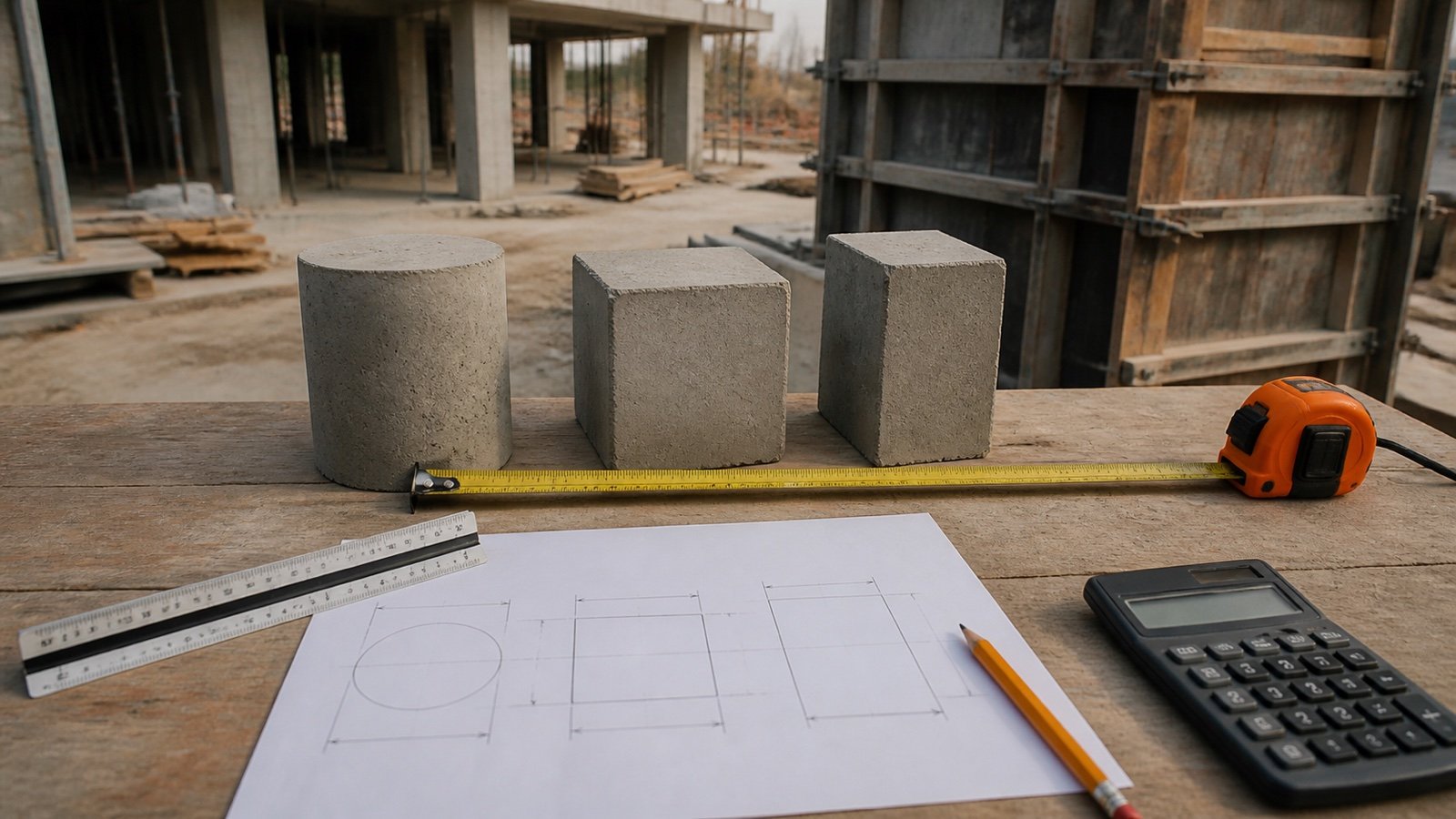

Which formulas apply to rectangular and round columns?

Convert every linear dimension to one unit before calculating perimeter and area. Use the contact perimeter after any approved face or intersection treatment.

The formulas measure vertical contact faces for constant-section columns. Add a top, bottom, sloping, return, kicker, joint, or closure face only when the project detail and selected measurement rules include it.

Worked example: rectangular and round column groups

The example uses 6 rectangular columns and 4 round columns at one level. Their formed heights and full lateral perimeters have already passed the drawing and intersection check.

For C1, the perimeter is 2 × (0.30 + 0.45) = 1.50 m. One column has 1.50 × 3.20 = 4.80 m² of contact area, and 6 columns have 28.80 m².

For C2, the circumference is π × 0.40 = 1.2566370614 m. One column has 1.2566370614 × 3.20 = 4.0212385966 m², and 4 columns have 16.0849543864 m².

Add the full-precision groups: 28.80 + 16.0849543864 = 44.8849543864 m². The worksheet can display 44.8850 m² while retaining the unrounded calculations.

How should beam, slab, and wall intersections be treated?

Mark the contact area that the formwork will occupy in the accepted construction sequence. Adjust the gross perimeter or height only under the project detail and measurement rule.

HKIS gives the rectangular and circular lateral formulas, then instructs the user to omit formwork at column intersections with slabs, beams, or structural walls as appropriate. RICS NRM 2 has its own classifications and deduction rules. The contract's adopted rules control the bill quantity.

How do attached or partially formed columns change the formula?

Sum the widths or arc lengths of the faces that require formwork, then multiply that contact perimeter by the formed height. Keep the attachment condition and face count in the worksheet.

A rectangular column with 4 formed faces uses 2 × (width + depth). A detail with 3 accepted formed faces uses the sum of those 3 face widths. Do not remove a face because a wall appears nearby on plan; the pour sequence, joint, finish, bond treatment, and form design decide whether that face still needs formwork.

RICS NRM 2 lists isolated and attached columns separately. A project using another measurement standard may classify or deduct them differently.

Why does gross area differ from form-set inventory?

Gross area counts contact work across all scheduled columns. Form-set inventory counts the panels and components needed at the same time, followed by the number of safe approved cycles.

The 6 C1 columns have 28.80 m² of gross contact area. If the pour plan forms 2 C1 columns at a time, the 2 net contact faces total 9.60 m² per cycle, and 3 cycles cover the group.

The physical inventory can exceed 9.60 m². Product modules, corner assemblies, overlaps, fillers, vertical and horizontal joints, damaged-component spares, platforms, ties, walers, props, clamps, lifting points, and storage requirements change the component list.

Doka's Framax Xlife page gives one product-specific example: its universal panels come in named widths and heights and form selected cross-sections in 2 in increments. Another system can use different modules. Build the inventory from the current supplier layout and instructions.

Can you divide contact area by plywood-sheet area?

That quotient is only a theoretical face-area comparison. It cannot produce a purchase count until a cut layout proves that every face, joint, corner, seam, grain or strength direction, overlap, edge, and reuse condition fits the selected sheet and frame system.

Example: 4.80 m² of contact area divided by a 1.22 m × 2.44 m sheet area gives 1.613 theoretical sheets. A rectangular column still needs 4 continuous faces, accepted joints, corner connections, and structural support. The form designer and cut plan may require more face material, another stock size, or a proprietary panel system.

Keep full sheets, cut pieces, reusable panels, one-use liners, curved shells, and permanent forms on separate rows. Record planned destination and remaining condition after each cycle.

How do unit conversions work?

Convert the linear inputs before multiplying, or convert the completed area with an area factor. NIST Handbook 44 Appendix C gives 1 ft² = 144 in² and 1 m² = 10.76391 ft².

Example: 2 rectangular columns are 18 in × 24 in with a 10 ft formed height. Convert 18 in to 1.5 ft and 24 in to 2 ft.

2 × (1.5 ft + 2 ft) × 10 ft × 2 = 140 ft²

Do not divide square inches by 12 to get square feet. Divide by 144, or convert each length before multiplication.

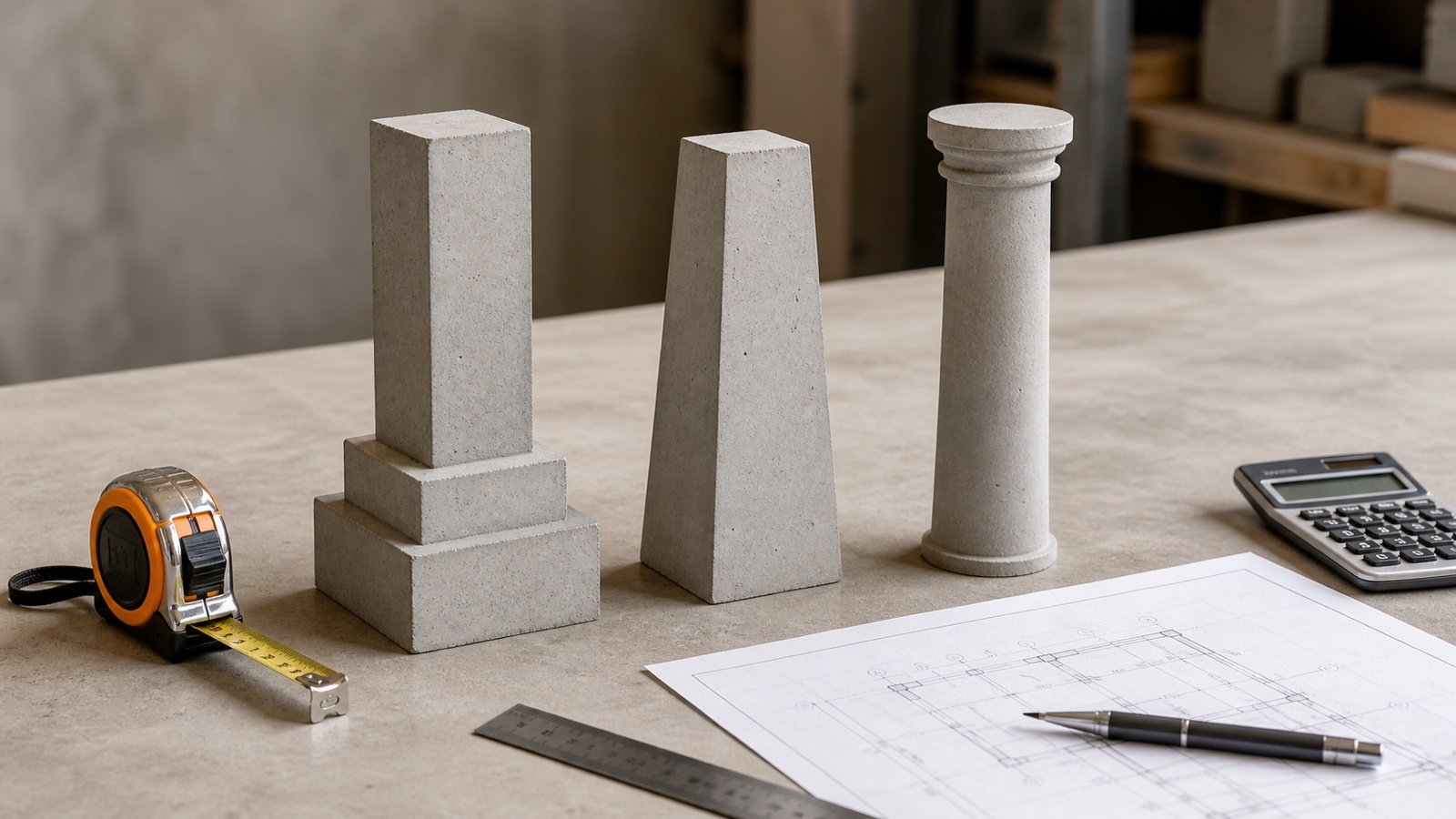

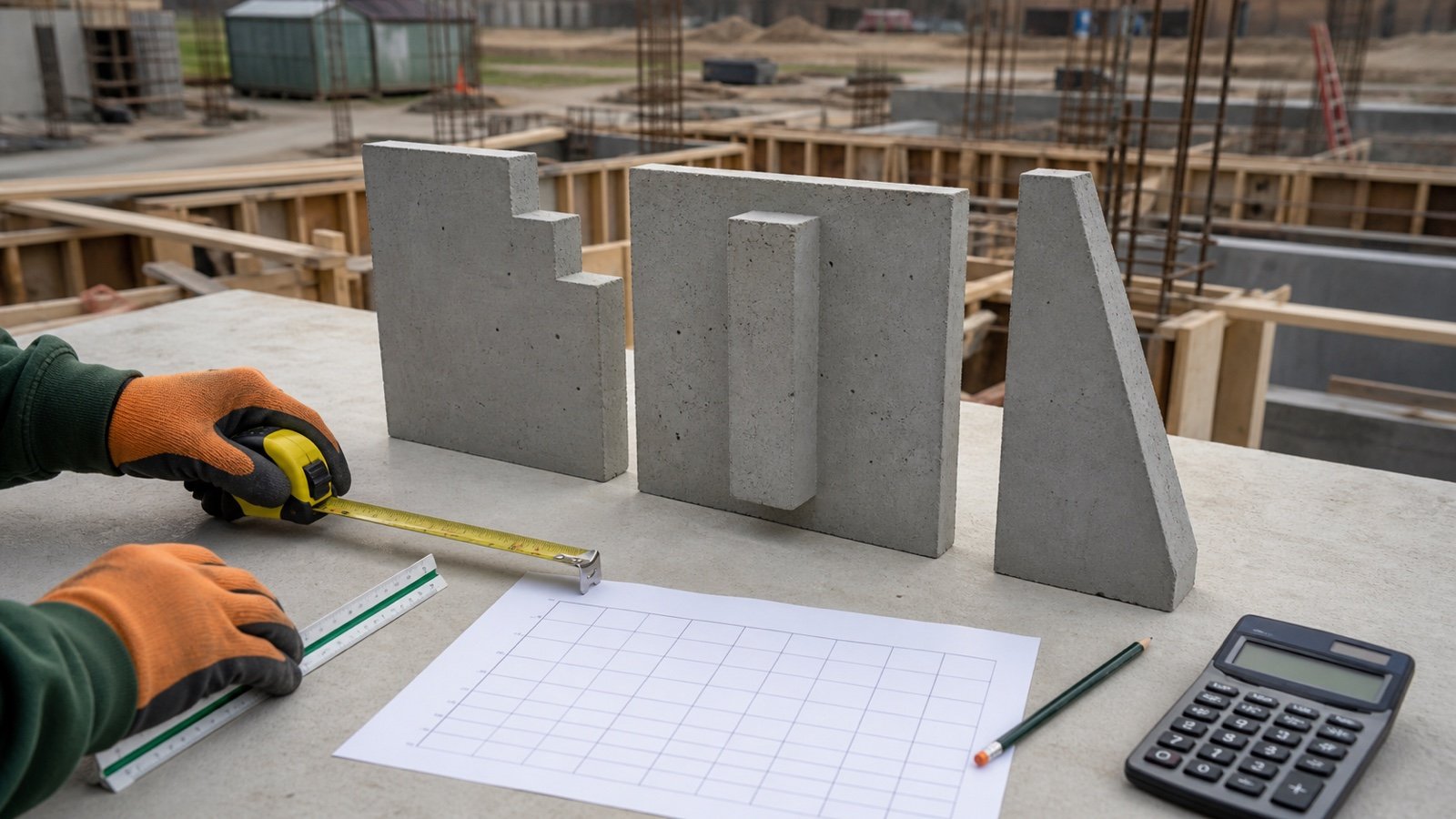

How should irregular, tapered, or sloping columns be measured?

Describe the accepted geometry and calculate the actual formed faces in non-overlapping sections. Keep each radius, slope, section change, lift, and intersection visible.

• Split a stepped column into constant-perimeter height zones.
• Use accepted slant lengths or developed face geometry for sloping work.
• Calculate a tapered rectangular face as a trapezoid when its edges change linearly.
• Use arc length for curved segments and state each radius.
• Separate permanent formwork, liners, special finishes, rebates, chamfers, boxouts, and void formers under the selected measurement rules.

RICS NRM 2 treats square and rectangular work as regular in this work section and asks for a dimensioned description or diagram for other shapes. It also asks users to state curved-work radii and describe permanent or left-in formwork under its framework.

Why can't area select ties, bracing, or pour rate?

Contact area contains no information about fresh-concrete pressure, rate of placement, concrete temperature or consistency, vibration, panel capacity, tie arrangement, connections, wind, platforms, access, or construction loads. A qualified formwork design and the selected system instructions control those items.

For covered United States construction work, OSHA 29 CFR 1926.703 requires formwork to support anticipated vertical and lateral loads without failure. It also requires formwork plans and revisions at the jobsite and sets conditions for form and shore removal.

Do not derive tie spacing, waler spacing, prop spacing, pour height, placement rate, stripping time, or reuse approval from square metres or square feet.

What should the worksheet contain?

Common column formwork quantity mistakes

• Using concrete volume as formwork area.
• Counting the top and bottom faces without a project requirement.
• Using floor-to-floor height without checking the formed lift.
• Ignoring beam, slab, wall, capital, pedestal, and kicker intersections.
• Combining isolated, attached, curved, permanent-form, and special-finish work.
• Deducting concrete cover from the column's formed dimensions.
• Applying a universal waste or reuse factor.
• Dividing gross contact area by sheet area without a cut and joint layout.
• Treating gross work across all pours as simultaneous form-set inventory.
• Using model quantities before checking joins, classifications, and revision updates.
• Deriving bracing or tie spacing from contact area.
• Reusing a damaged or unsuitable component because the cycle count expected another use.

Final measurement and release check

1. Freeze the drawing, schedule, specification, and form-design revisions.
2. Use the Concrete Column Quantity Takeoff to reconcile marks, shapes, counts, and level boundaries.
3. Mark the formed faces and intersections for each group.
4. Calculate and independently check the contact perimeter and area.
5. Apply only the contract's selected classification and deduction rules.
6. Separate gross measured work from simultaneous form sets and cycles.
7. Build the panel and hardware list from the approved system layout.
8. Record inspection, condition, changes, unresolved items, and release approval.

Return to the Concrete planning hub for the full cluster. Use the Footing Formwork Area guide for strip, pad, and stepped footing faces and the Concrete Slab Formwork Area guide for edges, blockouts, stop ends, and suspended soffits. The calculation methodology explains units, assumptions, and rounding, and the corrections route accepts a source or arithmetic issue.
