Concrete Block Sizes: Nominal vs Actual

Concrete block labels such as 8-inch, 200 mm, full, half, stretcher, or bond beam identify only part of a masonry unit. A reliable quantity record also needs the manufacturer, item code, shape, width, height, length, dimension state, joint, finish, and governing specification.

Keep nominal, specified, and actual dimensions separate. The face length and height control the basic area count, while unit width controls wall thickness and many assembly details.

Which dimensions identify a concrete block?

Concrete masonry unit size is commonly stated as width × height × length. Confirm that order in the current manufacturer catalog because a reversed entry can put wall thickness into the calculator's face-length field.

The Concrete Block Calculator asks for face-module length and height. It does not use unit width in the basic net-wall-area count.

What do nominal, specified, and actual dimensions mean?

Nominal dimension states the unit size with its intended joint allowance. Specified dimension is the manufacturing or construction target. Actual dimension is a measured value from a unit or assembly.

CMHA's glossary uses these three terms. CMHA's current unit technical note explains that ASTM C90 overall dimensions are compared with standard specified dimensions and lists exceptions for architectural features such as split faces and slump surfaces.

How do you read an 8 × 8 × 16 CMU label?

Under the width × height × length convention, the label describes an 8 in. nominal wall width, 8 in. nominal course height, and 16 in. nominal unit length. Confirm the manufacturer item because the short label does not identify shape, finish, cells, density, properties, or availability.

Angelus Block publishes a named precision-unit example with 8 × 8 × 16 in. nominal dimensions and 7.625 × 7.625 × 15.625 in. specified dimensions. That table applies to the stated product line.

1. Specified face length: 15.625 in.
2. Specified face height: 7.625 in.
3. Stated joint for the module example: 0.375 in.
4. Effective face module: 16 in. × 8 in.
5. Face-module area: 128 in², or 8/9 ft².
6. Exact modules per 100 ft²: 100 ÷ (8/9) = 112.5.
7. Whole-unit ceiling for that isolated area: 113 before a documented allowance.

The 7.625 in. figures are specified product data. A measured unit creates an actual-dimension record.

Which common precision-unit sizes does one manufacturer list?

Angelus Block's published table gives the following nominal and specified dimensions for its precision units and non-split dimensions of split-face units. Use the table as a source-labelled example and verify current local items.

These examples share an 8 × 16 in. nominal face, so their basic unit count by wall face area is equal. Width changes the wall assembly and product identity. It can also change weight, cells, face shells, webs, reinforcement, grout, connections, bearing, stock, handling, and price.

Can an inch block be treated as a metric block?

Keep inch-dimensioned and hard-metric supplier items separate. A rounded metric description of an inch product does not prove that it has the same specified dimensions as a product manufactured to a metric module.

Example: a verified product record gives a 390 mm specified face length, 190 mm specified face height, and 10 mm intended joint. Its effective module is 400 mm × 200 mm, or 0.08 m². The exact area rate is 12.5 units/m².

This is a method fixture. Obtain the manufacturer, item, specified dimensions, joint, standard, and local availability before using it. NIST conversions can express one dimension in another unit system; they do not create product equivalence.

Which dimension basis belongs in the block calculator?

The calculator's label uses “actual face plus joint” for a direct measured or product face input. Preserve whether the source value was specified or actually measured in the supporting record.

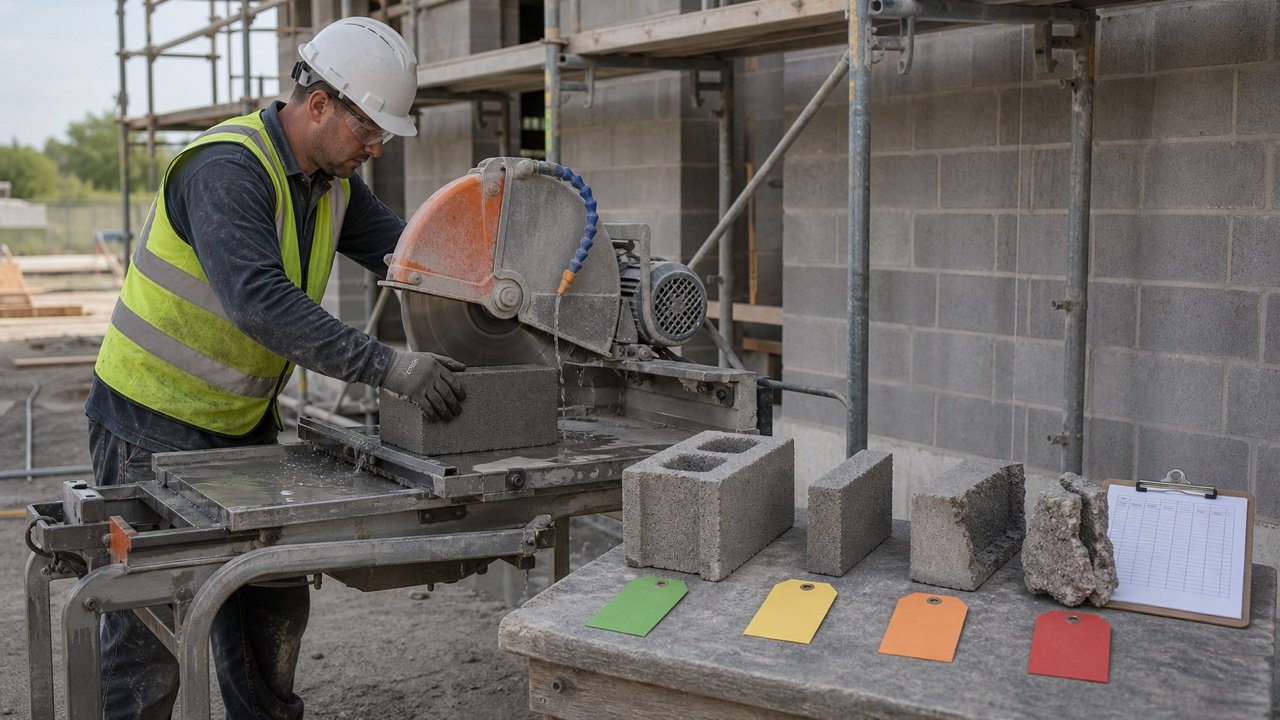

Do full, half, and specialty units share the same size?

Each shape needs its own manufacturer item and dimensions. Shape names describe function or geometry, and product lines can implement them differently.

• Full stretcher units form ordinary wall runs.
• Half-length units can close bond or fit returns and openings.
• Open-end or A-block units can accommodate reinforcement and grouting details.
• Knockout and bond-beam units form specified horizontal reinforced zones.
• Jamb, sash, sill, lintel, corner, pilaster, cap, coping, scored, ribbed, and split-face units answer other details.

The ordinary area estimate is reconciled with the detailed unit schedule. Replace applicable ordinary units with scheduled specialty units and avoid adding every specialty count on top of the complete ordinary count.

What changes with split-face, slump, scored, or ribbed units?

Architectural surfaces can change which dimensions are controlled and how actual surfaces vary. Angelus and CMHA both identify exceptions or special treatment for split and slump textures.

Record the controlled non-split dimensions, texture direction, scored module, corner return, face orientation, colour, production run, sample, and tolerance basis. A tape measurement across a random textured face may not represent the specified layout dimension.

Can two products with the same nominal label be substituted?

A matching nominal label supports one comparison field. Review the complete product and obtain the approvals required by the drawings, specification, design responsibility, and procurement process.

ASTM C90's public scope covers loadbearing concrete masonry units, including hollow and solid units. The exact standard edition referenced by the project controls its requirements. A size chart cannot establish compliance.

Common concrete block size mistakes

• Reversing width, height, and length.
• Entering unit width as the calculator's face length.
• Adding a mortar joint to nominal dimensions.
• Leaving the joint out when using specified or actual face dimensions.
• Calling a specified catalog value an actual measurement.
• Assuming every 8-inch, 200 mm, CMU, concrete block, or cinder block label identifies the same product.
• Using rounded metric equivalents as hard-metric product dimensions.
• Publishing generic weight, pallet, strength, or use from width alone.
• Counting only stretchers when the wall needs half and specialty units.
• Approving a substitution from nominal dimensions alone.

What should the unit-size record contain?

• Manufacturer, plant, product line, item code, shape number, and current availability.
• Width × height × length order and units.
• Nominal, specified, and relevant actual dimensions in separate fields.
• Intended bed and head joints plus effective face module.
• Unit standard and edition, classification, properties, finish, colour, and texture required by the project.
• Full, half, cut, corner, jamb, sill, lintel, bond-beam, reinforced, grouted, cap, and other item quantities.
• Submittal, sample, quote, pallet, weight, delivery, return, drawing revision, verifier, and date.

Use the Concrete Block Wall Layout guide to connect the verified module to opening sizes and positions. Return to the Concrete Planning hub for related tools.

Safety and scope limits

Unit size affects handling, pallet stability, wall weight, temporary stability, lifting, cutting, silica exposure, scaffold, reinforcement, grout, and bracing. Follow current product data, drawings, specifications, safety plans, equipment limits, and qualified direction.

This reference does not choose a unit for structural, fire, acoustic, thermal, moisture, durability, or code performance. It also does not approve a wall thickness, substitution, pallet load, vehicle load, lift, cut, or construction detail.
