A wall concrete takeoff starts with the exact concrete boundary. Finishes, insulation, form thickness, a footing below the wall, or a cap above it can change the result when they enter the measured dimensions.
This calculator handles one group of identical constant-thickness rectangular walls. It can deduct identical rectangular openings that fit inside each wall and converts the checked volume to whole packages using the current mixed yield you enter.
How much concrete does your wall need?
Enter the clear wall length, concrete height, approved concrete thickness and number of identical walls. Add a repeated rectangular opening only when its dimensions and deduction belong to every wall in the group.
The result records quantity. Project drawings, specifications and responsible design still control the wall dimensions, reinforcement, footing, joints, forms, mixture and construction sequence.
What does each wall result mean?
| Result | Calculation | Use |
|---|---|---|
| Gross volume per wall | Length × height × concrete thickness | Full rectangular wall before openings |
| Opening deduction | Opening width × opening height × thickness × count | Approved repeated void inside one wall |
| Net volume per wall | Gross − opening deduction | Concrete in one accepted wall |
| Total measured concrete | Net per wall × identical walls | Unrounded geometric group quantity |
| Planning volume | Measured volume after the entered allowance | Documented planning basis |
| Whole packages | Planning volume ÷ current yield, rounded up once | Package-purchase estimate |
Which wall dimensions belong in the calculator?
Use the length and height of the constant-thickness concrete zone. Measure thickness across the concrete itself. Keep finishes, drainage boards, membranes, insulation and removable form faces outside that dimension.
For insulated concrete forms, use the approved concrete-core thickness only. Total block or assembly thickness can include foam faces and other components that do not become concrete. Check the current ICF product drawings because webs, ties, corners and special units can change the core geometry.
What formula does the Concrete Wall Calculator use?
Gross wall volume = length × height × concrete thickness
Opening volume = opening width × opening height × concrete thickness × openings per wall
Net group volume = (gross wall volume − opening volume) × identical walls
Whole packages = ceiling(net group volume × allowance factor ÷ current mixed yield)
Metric wall length, height and opening dimensions use metres, while thickness uses centimetres. Imperial length, height and openings use feet, while thickness uses inches. The calculator converts thickness before multiplying and keeps full precision until the compatible package quotient is rounded upward.
Worked metric example with a door opening
Two identical walls measure 8 m long, 3 m high and 20 cm thick. Each wall has one approved 1 m × 2.1 m full-thickness opening. The record applies a 5% allowance, and the selected product lists a 20 L mixed yield.
- Convert thickness: 20 cm = 0.20 m.
- Gross volume per wall: 8 × 3 × 0.20 = 4.80 m³.
- Opening per wall: 1 × 2.1 × 0.20 = 0.42 m³.
- Net per wall: 4.80 − 0.42 = 4.38 m³.
- Measured group volume: 4.38 × 2 = 8.76 m³.
- Planning volume: 8.76 × 1.05 = 9.198 m³, or 9,198 L.
- Package quotient: 9,198 ÷ 20 = 459.9, rounded to 460 packages.
The 5% allowance and 20 L yield are example inputs. The project record and exact selected product control those fields.
Worked imperial example without openings
One constant wall measures 20 ft long, 8 ft high and 8 in thick. The selected 80 lb product lists an approximate mixed yield of 0.60 ft³.
- Convert thickness: 8 in ÷ 12 = 0.6666667 ft.
- Measured volume: 20 × 8 × 0.6666667 = 106.6666667 ft³.
- Convert to cubic yards: 106.6666667 ÷ 27 = 3.9506173 yd³.
- Package quotient: 106.6666667 ÷ 0.60 = 177.7778.
- Whole-package result: 178 bags.
The calculator does not decide whether mixing 178 packages is a suitable supply or placement method. Check the Ready-Mix Concrete Calculator and producer workflow for a delivery-based plan.

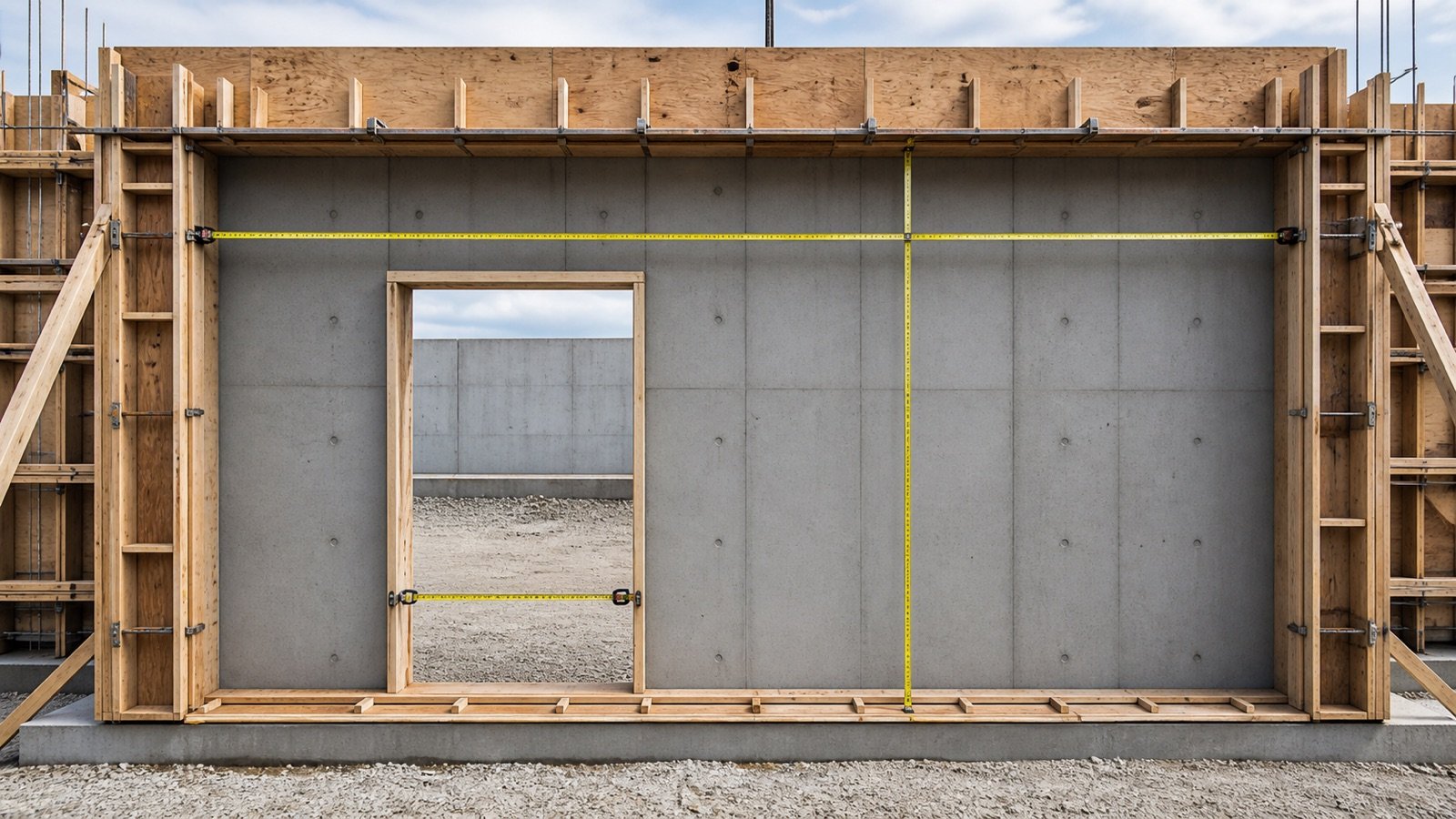

When should an opening be deducted?
Deduct an opening when the project quantity rules accept it, the void passes through the same wall thickness, and its dimensions fit inside the measured wall. Keep the opening count, mark and source drawing beside the calculation.
The calculator handles one repeated rectangular opening size per wall group. Use separate calculations when doors, windows, sleeves or recesses differ. A lintel, sill, jamb thickening, edge return, rebate or partially filled opening needs its own non-overlapping geometry.
An architectural opening size may differ from the structural rough opening. Use the dimension and boundary required by the current structural record and adopted measurement rules.
How should mixed wall sizes be scheduled?
Create one run for walls that share length, height, thickness, opening geometry, allowance basis and package yield. Make another row when any of those fields changes.
| Condition | Quantity treatment |
|---|---|
| 4 identical straight walls | Use wall count 4 and round the compatible group once |
| One wall has another height | Use a separate group |
| Thickness changes along the wall | Split into non-overlapping constant-thickness zones |
| Door and window sizes differ | Prepare separate opening rows or an independent net-volume schedule |
| Curved or battered wall | Use approved geometry outside this rectangular calculator |
Does the wall include its footing, cap or pilasters?
The result covers the rectangular wall zone entered. A footing, key, thickened base, pilaster, buttress, corbel, cap, curb or haunch needs a separate accepted geometry.
Use the Concrete Footing Calculator for a separate strip, pad or stepped footing group. Use the Concrete Column Calculator for a distinct rectangular or round pilaster that the project records treat as a column. Match boundaries so adjacent solids do not overlap or leave a gap.
Why is concrete thickness different from formwork area?
Concrete thickness contributes to volume. Formwork uses contact area and depends on which faces need forming. A wall with 20 cm concrete thickness can require forms on 2 faces, 1 face, an end, a stop end or another project-defined set.
Do not multiply the concrete result by a form-reuse factor. Prepare form-contact area, panel inventory, ties, walers, braces, working platforms and cycles under the approved form design and selected system documents.
Should reinforcement and embeds be deducted?
Do not make a generic deduction for reinforcing bars, ties, waterstops, conduits, anchor assemblies, sleeves or inserts. A formal quantity rule may ignore small embedded volumes, while a large boxout or void may need a documented deduction.
Any deduction needs verified dimensions, the portion inside the same concrete zone and a non-overlapping calculation. Keep it visible in the takeoff instead of changing the wall thickness.
Why must package yield come from the selected product?
Package mass identifies dry material mass. Mixed yield states the approximate finished volume produced by the named package when prepared as directed.
QUIKRETE Concrete Mix No. 1101 lists approximate yields of 0.30 ft³ for 40 lb, 0.45 ft³ for 60 lb and 0.60 ft³ for 80 lb packages. These values support that named product record. They are not universal conversions for every concrete mix, package size or market.
Record the product, package size, mixed yield, technical-data revision and date checked. Follow current water, mixing, placement, temperature, curing and safety instructions for the selected material.
How should a planning allowance be selected?
The calculator starts at 0%. Enter a percentage when drawings, measured tolerance, accepted field conditions, placement planning or another project record supports it.
Keep measured volume and planning volume side by side. An allowance cannot define an unknown wall thickness, replace a missed opening, choose a mixture or repair an overlapping footing calculation.
Common concrete-wall quantity mistakes
- Using finished assembly thickness instead of concrete thickness.
- Using outside form dimensions without checking the clear concrete boundary.
- Deducting an architectural opening size that differs from the structural void.
- Applying one opening size to walls with different openings.
- Counting the footing, wall and pilaster over the same intersection.
- Combining changing heights or thicknesses under one rectangle.
- Using inches as feet or centimetres as metres.
- Rounding each wall to whole packages before combining an identical group.
- Using package mass as mixed yield.
- Applying a universal allowance, thickness, strength or price.
- Treating wall volume as formwork area or structural approval.
What safety and design limits apply?
Wall dimensions, reinforcement, joints, drainage and stability depend on loads, soil and water conditions, exposure, materials, current drawings, specifications, codes and responsible design. This tool does not check overturning, sliding, bearing, crack control, waterproofing, temporary support or construction loads.
For covered United States construction work, OSHA 29 CFR 1926.703 requires formwork to support anticipated vertical and lateral loads without failure and requires formwork plans and revisions at the jobsite. OSHA 29 CFR 1926.701 also requires protection from impalement hazards where employees could fall onto protruding reinforcing steel. Apply the actual project safety plan and governing law.
What should the wall quantity record contain?
- Wall mark, level, location, count, drawing and revision.
- Clear length, concrete height, approved concrete thickness and units.
- Opening mark, structural dimensions, count and deduction rule.
- Gross, deducted and net volume for each group.
- Separate footing, pilaster, cap, key and other adjacent volumes.
- Allowance, reason, approval source and planning volume.
- Product, current mixed yield, exact quotient, whole packages and supplier basis.
- Preparer, checker, unresolved conditions and date.
Use the Concrete Bags Calculator when an approved finished volume already exists. Return to the concrete planning hub for related tools. The calculation methodology explains units, precision and rounding, and the corrections route accepts a formula or source issue.
Sources and source scope
- NIST Handbook 44 (2026), Appendix C supports the unit relationships.
- QUIKRETE Concrete Mix No. 1101 SPEC-DATA supports the named package-yield examples.
- OSHA 29 CFR 1926.703 and OSHA 29 CFR 1926.701 support the stated United States workplace boundaries.
Source scope: NIST supports unit relationships. The manufacturer record supports its named product. OSHA supports the cited United States workplace requirements. These sources do not select a wall dimension, opening deduction, reinforcement, concrete mixture, allowance, form design, placement method or supplier order.
